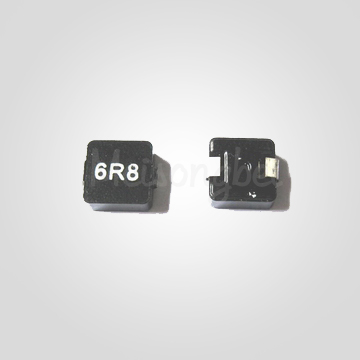

Molding Power Choke, SMD High Current Inductors (HI Series)
|
Series |
Dimensions (mm) |
Inductance Range |
Rated Current |
Specification |
||
|
L |
W |
H |
||||
|
HI0420 |
4.45±0.3 |
4.06±0.3 |
2.0Max |
0.1uH - 4.7uH |
3A - 22A |
|
|
HI0520 |
5.5±0.3 |
5.2±0.3 |
2.0Max |
0.1uH - 10uH |
2.2A - 25A |
|
|
HI0530 |
5.5±0.3 |
5.2±0.3 |
3.0Max |
0.68uH - 10uH |
3A - 14A |
|
|
HI0612 |
6.95±0.3 |
6.6±0.3 |
1.2Max |
0.56uH - 10uH |
2.2A - 11A |
|
|
HI0620 |
6.95±0.3 |
6.6±0.3 |
2.0Max |
0.1uH - 6.8uH |
3A - 30A |
|
|
HI0624 |
6.95±0.3 |
6.6±0.3 |
2.4Max |
0.47uH - 10uH |
6A - 22A |
|
|
HI0630 |
6.95±0.3 |
6.6±0.3 |
3.0Max |
0.1uH - 22uH |
3A - 40A |
|
|
HI0640 |
6.95±0.3 |
6.6±0.3 |
4.0Max |
0.47uH - 10uH |
6A - 22A |
|
|
HI0650 |
6.95±0.3 |
6.6±0.3 |
5.0Max |
0.13uH - 56uH |
3A - 48A |
|
|
HI1040 |
10.92±0.3 |
10.3±0.3 |
4.0Max |
0.33uH - 47uH |
5A - 50A |
|
|
HI1050 |
10.92±0.3 |
10.3±0.3 |
5.0Max |
0.82uH - 68uH |
5A - 50A |
|
|
HI1250 |
13.45±0.3 |
12.6±0.3 |
5.0Max |
0.33uH - 68uH |
3.5A - 80A |
|
|
HI1260 |
13.2±0.3 |
12.8±0.3 |
6.0Max |
4.7uH - 68uH |
4.5A - 22A |
|
|
HI1270 |
13.2±0.3 |
12.8±0.3 |
7.0Max |
82uH - 220uH |
2.5A - 5A |
|
|
HI1770 |
17.5±0.3 |
17±0.3 |
7.0Max |
1.5uH - 68uH |
6.5A - 40A |
|
